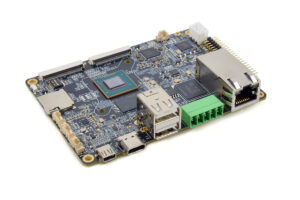

Estone Technology has announced the new addition to our pico-ITX embedded board family – EMB-2238, an NXP i.MX8M based single board computer. Building upon the success of our i.MX6 board series. The EMB-2238 is our first embedded board to integrated with hardware DSP specially designed for voice control applications, ThisQuad-coree ARM Cortex-A53 board takes the advantage of NXP’s latest i.MX8M application processor with up to 15-year longevity, advanced audio and 4k video supports. It is ready for ODM and industrial product designs for the fast-growing edge computing, voice human-machine interface (HMI), streaming multimedia, and machine learning applications.
Targeting embedded and IoT applications with voice control, advanced audio and display requirements, the EMB-2238 features a PoE (Power over Ethernet) ready GbE port, rich I/O options including RS-232/485 and USB 3.0, over 20 channels of high-performance digital audio input and output expansion and dual-core hardware DSP for voice-control algorithms. The board also features a 4-lane MIPI DSI and CSI and built-in I2C touch panel support for all types of touchscreen applications. A 40-pin expansion header supports PCIe, GPIO, I2C, serial communications and a wide range of expansion options.
The voice control and audio support of the board are where the EMB-2238 truly stands apart. The onboard smart codec provides support for Dual Digital MEMS Microphone inputs, dual-core DSP with multi-mic noise suppression, Automatic Speech Recognition (ASR) enhancement, acoustic echo cancellation (AEC) and barge-in technology enable voice commands for during loud music playback., functions. 16 channel digital audio inputs and 10 channel digital audio outputs support microphone array expansion for voice and best in class audio with 32-bit 384KHz at each channel. BSP supports include Embedded Linux, Android, Qt, Wayland, Amazon AVS (Alexa Voice Service) Device SDK, Sensory TrulyHandsfree Wake Word Engine, and offline Automatic Speech Recognition (ASR), and Natural Language Understanding (NLU) engine, like the Snips AI voice control platform.
Highlighted Product Specifications follows:
- Processor – NXP i.MX8M Quad 4x ARM Cortex-A53, AND 1x ARM Cortex-M4
- Storage – Onboard iNAND flash (8GBdefault), 1x MicroSD Slot, 256k EEPROM
- Display Options – 1x MIPI 4-Lane DSI for 7”, 8”, 10.1”, and other LCD Panel, 1x MicroHDMI
- Expansion – 40-Pin Connector with PCIe, GPIO, Front Panel Control, PoE Input, 8-Channel Audio
- I/O – 1x RS-232/485 Block, 1 x RS-232 Header, 2x USB 2.0 Type A, 2x USB 2.0 Header, 1x USB Type C 3.0 OTG, 4x GPIO, 2x I2C (for TP and MIPI CSI), 1x 4-lane MIPI-CSI
- Voice Control – Dual Digital MEMS Microphone Header via CS47L24 with Dual DSP, Support Multi-MIC Noise Suppression, Acoustic Echo Cancellation (AEC), Omi-Directional Spatial, 8 Channel Digital Audio/DMIC Inputs (SAI5) for MIC Array
Live demo of the Snips and Amazon AVS based on Yocto built Linux is available a the Embedded World 2019 at Nuremberg, Germany, February 26 – 28. Booth number is Hall1: 1-129.
