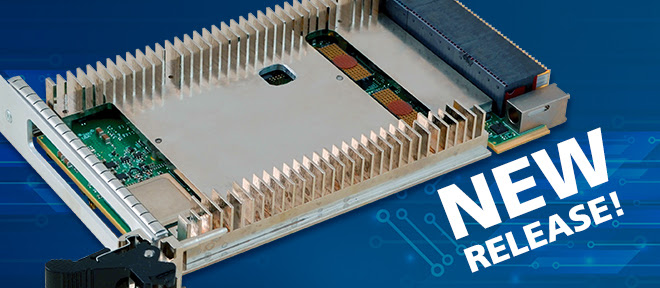

Acromag has released the VPX7600 single-board computer. This 3U OpenVPX SBC is equipped with Intel’s 11th Generation Tiger Lake-H Xeon W-11000E processor and adheres to the SOSA I/O intensive profile. It features an XMC mezzanine site and a range of I/O peripherals for enhanced flexibility. The Intel E810 Ethernet controller supports 100GbE on the data plane and 10GbE on the control plane. The NVMe SSD provides up to 1TB of M.2 data storage. Backplane I/O options include 2.5GbE, DisplayPort, USB 3.2, SATA III, RS232/422, and GPIO. The board is available in both conduction-cooled and air-cooled versions with front I/O.
The base model utilizes Intel’s W-11865MRE 8-core CPU, connected to 32GB dual-channel DDR4 ECC SDRAM and a 64GB NVMe M.2 BGA SSD. A PCIe Gen 4 x8 interface links to the Intel E810 100GbE controller, supporting 100GBASE-KR4 on the data plane and 10GBASE-KR on the control plane to P1. P2 connects to a 2.5GBASE-T/1GBASE-T Ethernet port with TSN support. The DisplayPort 1.4 interface supports 4K video resolution with HBR3 data rates on the backplane. The XMC site host interface offers 8 lanes of Gen4 PCIe to P15 and P16 rear I/O or front I/O access on the air-cooled version. An FPGA implements a Crossfield Technology HOST 3.0 / VITA 46.11 Tier 3 / IPMI 1.5 Compliant IPMC. Board support packages are available for Windows®, Linux™, and VxWorks™.
Designed and manufactured in the USA, the VPX processor board provides reliable operation for military, aerospace, and scientific research systems. It aligns with SOSA standards, making it suitable for U.S. Department of Defense embedded computing systems and modular open system (MOSA) applications.
