Exar Corporation introduces a new family of ±60V fault protected RS-485/RS-422 (TIA-485/TIA-422) transceivers able to withstand direct shorts and achieve overvoltage protection with no external components. Designed for improved performance in noisy industrial environments and increased tolerance to system faults, these transceivers simplify design in building automation, HVAC networks, energy metering, process control and other industrial automation applications.

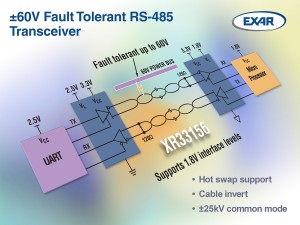

At initial launch, the family includes four parts: XR33053, XR33152, XR33156 and XR33158. The XR33156 is the most feature-rich ±60V tolerant device on the market with cable invert control to correct for reversed bus pins and a low voltage logic pin, eliminating the need for a level shifter in low voltage applications. Other inherent protection features include ±25V common mode voltage, hot swap glitch protection, overload protection and enhanced receiver fail-safe protection for open, shorted or terminated but idle data lines.
The XR33053, XR33152, XR33156 and XR33158 operate over a wide 3V to 5.5V supply voltage range and feature the industry’s lowest standby current of 1uA (max), 1nA (typ). They support data rates up to 20Mbps in either full- or half-duplex configurations, exceed ±15kV ESD protection on the bus pins and operate over the standard industrial temperature range of -40˚C to 85˚C.
Summary of features:
– Wide 3.0V to 5.5V supply operation
– ±60V fault tolerance on analog bus pins
– Extended ±25V common mode operation
– 1.65V to 5.5V I/O logic interface VL pin (XR33156)
– <1uA (max) standby current
- 20Mbps maximum data rate
- Robust ESD (Electrostatic Discharge) protection for RS-485 bus pins
