Long-range low-power digital voice/data transceiver operates in 2.4 GHz band

May 8, 2019 By Aimee Kalnoskas Leave a Comment

CML Microcircuits has announced the availability of the SCT2400 transceiver, designed to sustain secure digital voice and data communication channels over ranges in excess of 12km (line of sight) for systems operating in licensed and unlicensed bands.

The SCT2400 is a highly integrated digital radio transceiver based on spread spectrum modulation operating in the 2.4GHz frequency range. As such, it can be deployed in multiple geographical regions to enable products operating in both licensed and unlicensed applications. Its exceptional range of over 12km (line of sight) with up to 100mW of output power is achieved while consuming just 10mA in scan mode, around 52mA when receiving voice and just 64mA when transmitting voice. Its low power credentials and security features make it an ideal solution for a range of digital voice and data applications.

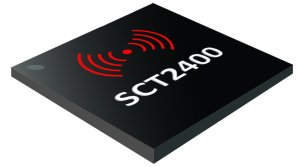

SCT2400 transceiverThe features integrated into the SCT2400 include CML’s voice coding expertise and advanced forward error correction, meaning it can maintain clarity and security over long ranges in low power radio systems such as Private Mobile Radio (PMR) and Land Mobile Radio (LMR). This will enable PMR/LMR to move from disparate and regional bandwidths into the 2.4GHz ISM band, now globally recognised as the preferred license-free operating frequency. Adopting the SCT2400 in new designs will enable manufacturers to standardise on a single platform for multiple regions, while the support for short data messages will also elevate the feature set of PMR/LMR and allow it to address new markets and emerging applications.

Commenting on the release of the SCT2400, David Brooke, Product Manager for CML’s Voice and Data products, said: “The SCT2400 is a truly ground-breaking product, as it will enable developers to realise innovative solutions in smaller form factors, while delivering exceptional battery life when compared to current radios. This offers customers the potential to achieve exceptionally long-range voice and data communications and we are excited to see what new products the SCT2400 will enable.”

The SCT2400 achieves a power consumption that is up to a factor of five better than competing products targeting PMR. Its low power dissipation and small size (10mm by 10mm, 144-BGA package) means it can be used in portable, mobile and wearable products, including fitness trackers, smart clothing and wireless headsets. The SCT2400 operates from a single 3V supply and supports digital voice modes that include peer to peer, group call and broadcast, along with an SMS data mode.

Filed Under: Applications, microcontroller, Wireless Tagged With: cmlmicrocircuits
