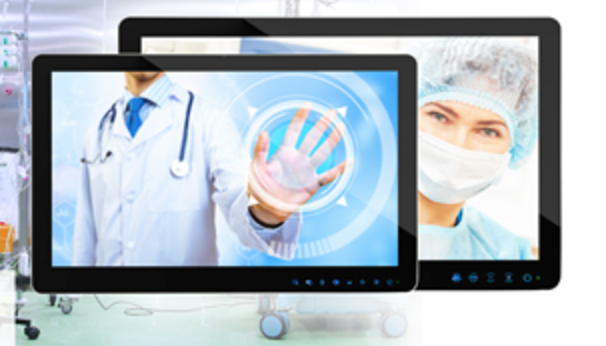

Canvys, a Division of Richardson Electronics, expands its product portfolio with the new True Flat G Series. Available in 21.5 and 24 inches, the new series features a slim housing design with no (zero) bezel and a flat front surface. These monitors boast a sleek design as well as excellent image quality with full-HD resolution. Features and specifications include:
- 21.5” housing is 56.5 mm thick
- 24” housing is 59.5 mm thick
- Resolution: 1920 x 1080 / Full-HD
- Energy-saving LED backlight panels
- Inputs: VGA, DVI-D, HDMI, DisplayPort
- Approvals: CE, UL, FCC
- True Flat design with AR protection glass and IP54 (without I/Os)
- OSD Touch Keys
- Fanless
- White plastic housing (RAL 9003)
- Options: PCap (Proj. Capacitive Touch), Ambient Light Sensor, High-Brightness Panel
There are many customization possibilities with the G Series including an all-in-one version with an integrated PC. The panel PCs feature state-of-the-art CPU and GPU technology. The computers come with a sixth generation, standard Intel Core i5-6300U processor. The housing does not require ventilation slots and includes a rear metal cooling plate, allowing for more power efficiency.
Healthcare and medical users will benefit from the zero bezel design (easily cleaned and disinfected), abundant ports, medical approvals, and DICOM compliance. The display series complies with IEC medical standardizations: IEC/EN 60601-1 Edition 3.1 (Safety, effective 2018) and IEC/EN 60601-1-2 4th Edition (EMC, effective 2019).
The True Flat G Series is ideal for OEMs. The displays are built using durable quality components, and have long-term availability, scalability, and low power consumption. All products are custom-engineered by Canvys at our facility in Marlborough, MA or Donaueschingen, Germany. We are a full-service integrator/manufacturer that provides OEMs with custom display solutions that meet all their needs and business requirements. Some of our capabilities include:
- Needs assessment, custom engineering and prototyping
- The latest technologies for touch and protective shield integration
- Injection molding, deep drawing, SLA prototyping, and strand-casting
- Various housing designs such as open frame, panel/chassis/rack mount, slim and lightweight to rugged designs
- A wide range of controller solutions with inputs in many combinations
- Single Board Controller and PC integration
- In-depth testing and validation processes applied throughout the product development
- Regulatory approvals
