FPGA-based dev kit enables small form-factor for 4K video and imaging

February 20, 2019 By Aimee Kalnoskas Leave a Comment

Today’s video and imaging processing involves developing complex computer algorithms which enable systems to capture and display information and high-resolution images. As designers require high-performance computing, memory and connectivity resources to achieve high-resolution imaging with rich, vivid detail, Field Programmable Gate Arrays (FPGAs) are excellent platforms to achieve this, as they can perform thousands of tasks in parallel to maximize data throughput. The new PolarFire FPGA imaging and video solution from Microchip Technology Inc., delivers capabilities superior to alternative technologies to support resolution as high as 4K in small, low-power form factors necessary for a wide variety of imaging and video applications.

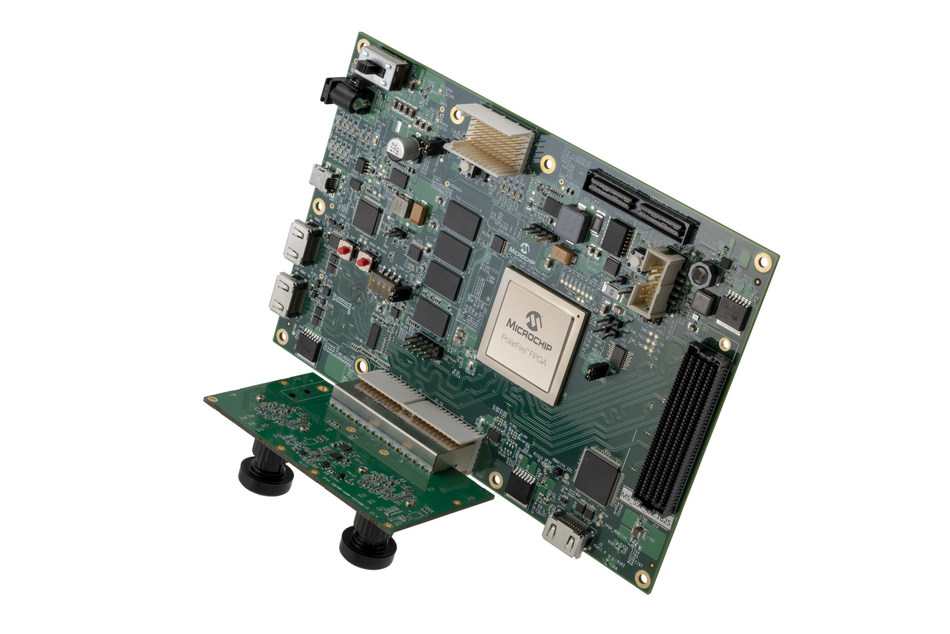

The new imaging and video solution comes with a complete ecosystem for customers, including comprehensive application-specific hardware, optimized intellectual property suite for image processing, sample reference designs, demonstration designs and collateral—providing designers with the hardware and software needed to implement 4K resolution designs targeting PolarFire FPGAs. The video and imaging kit enables high-performance evaluation of 4K image processing and rendering using dual-camera sensors suitable for designing demonstrations for video stitching, static and dynamic object insertion, as well as real depth estimation based on disparity maps. With its modular intellectual property suite providing clients the ability to prototype and accelerate time to market, the kit can be leveraged for multiple projects to save costs, time and effort.

The kit also includes industry-standard imaging interfaces bolstered by 4 GB on-chip Double Data Rate fourth-generation (DDR4) and 1 GB flash memory for frame buffering and user configuration, respectively. It offers bidirectional Mobile Industry Processor Interface (MIPI) as a sensor interface and the choice of High-Definition Multimedia Interface (HDMI), Display Serial Interface (DSI) for display and Serial Digital Interface (SDI) for broadcast-grade video. The kit also facilitates the evaluation of reference designs for Picture-in-Picture (PiP) and edge detection with configurable resolution and image signal parameters. These features enhance the PolarFire FPGA imaging and video solution’s suitability for numerous applications in multiple markets, including surveillance and Internet Protocol (IP) cameras, automotive and other untethered/mobile use cases, machine vision/medical, smart home and others in the industrial, aerospace/aviation and defense markets.

The PolarFire imaging and video solution includes dedicated hardware to enable evaluation of multiple imaging and video protocols on PolarFire FPGAs. The development kit, optimized intellectual property suite, sample reference designs, demonstration designs and collateral are also included as part of the solution’s complete ecosystem. The kit includes a free one-year gold license to the Libero SoC Design Suite, Microchip’s comprehensive development tool.

Filed Under: FPGA Tagged With: microchiptechnologiesinc, microsemicorporation
