Wi-Fi 6/6E SoC, Wi-Fi 6E NIC promote reliable connectivity

October 2, 2021 By Aimee Kalnoskas

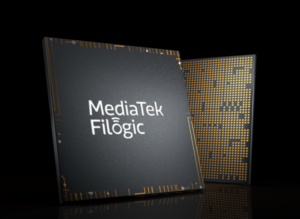

network interface card (NIC) MediaTek unveiled its new Filogic connectivity family with the introduction of the Filogic 830 Wi-Fi 6/6E system-on-chip (SoC) and Filogic 630 Wi-Fi 6E network interface card (NIC) solutions. MediaTek’s new Filogic series of high-performance Wi-Fi 6/6E chipsets provide reliable connectivity, high computation capabilities, and a rich set of features in highly integrated, power-efficient designs.

Filogic 830 packs a wide variety of features into a compact, ultra-low power 12nm SoC, allowing customers to design differentiated solutions for routers, access points and mesh systems. The SoC integrates four Arm Cortex-A53 processors operating at up to 2GHz per core for up to +18,000 DMIPs processing power, dual 4×4 Wi-Fi 6/6E for up to 6Gbps connectivity, two 2.5 Gigabit Ethernet interfaces and a host of peripheral interfaces. Filogic 830’s built-in hardware acceleration engines for Wi-Fi offloading and networking enable faster and more reliable connectivity. In addition, the chipset also supports MediaTek FastPath™ technology for low latency applications such as gaming and AR/VR.

Filogic 630 is a Wi-Fi 6/6E NIC solution that supports dual-band, dual-concurrent 2×2 2.4GHz and 3×3 5GHz or 6GHz for up to 3Gbps. The chipset supports a unique 3T3R 5/6GHz system with internal front-end modules (FEMs) which provide equivalent or better range than competing 2T2R solutions with external FEMs. This highly integrated design helps lower bill of materials (BOM) cost, while allowing for sleeker designs with its small RF frontend area. Filogic’s 630’s third antenna enables superior transmit beamforming capability as well as diversity gains. Filogic 630 supports interfaces such as PCIe, which allows it to be combined with Filogic 830 for tri-band connectivity solutions for broadband gateways, enterprise access points, and retail routers with even higher speeds and bandwidth capacity.

Wi-Fi 6E offers a number of advantages over previous Wi-Fi generations, including lower latency and additional capacity and speed. Devices using Wi-Fi 6 connections in 6GHz are designed to make use of wide 160 MHz channels and uncongested bandwidth in 6GHz to deliver multi-gigabit, low latency Wi-Fi, providing reliable connectivity for applications like streaming, gaming, AR/VR and more.

You may also like:

  • LiFi
    Is Li-Fi “To Be” or “Not To Be”? Part 1:…

  • What is Wi-Fi HaLow? Part 1

  • Antennas for smart IoT applications

  • Designer’s guide to smart home tech, Part 1
  • roku ultra
    Teardown: The new Roku Ultra

Filed Under: Applications, Telecommunications, Wireless Tagged With: mediatek
